What is Under the Hood of a Car?

Clearly, to look under the car engine hood, you first have to raise it, which is sometimes not so easy a job as it sounds. The engine is in front of most American and foreign cars.

First, look under the dashboard to the left of the steering column for a hood release device; that is where they are positioned on most cars, but they come in various shapes and are sometimes located at the front of the hood.

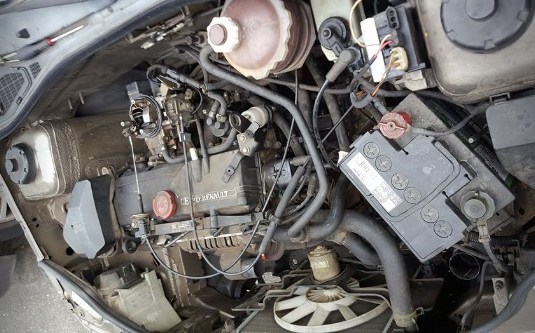

under car hood

The next place to try is at the front of the car. Reach your fingers through an opening in the grill and feel around for a release lever.

The Owner’s Manual contains both the location and instructions (it may be indexed us “bonnet” in different car manuals), but if you have a problem with it, stop at a service station or ask the dealer you purchased the car for help.

Once you have located the release and raised the hood, do it several times until you memorize how it is done.

There are three kinds of hoods, varying in their location and the way they open.

The most common hood is located at the front end of the car, is hinged near the windshield, opens at the front, and has two catches.

After the first catch is released, the hood raises perhaps an inch, and the second catch must be activated to ultimately increase the hood.
(That second catch is there as a safety measure to prevent a hood from being accidentally released and blown back while the car is in motion.)

Another type of hood is located at the front of the car. It has front hinges with an opening near the windshield.
This type of hood has only one release.

The third kind of hood is located at the rear of the car and is called a “motor lid” on a VW Beetle or bus and other vehicles.

With some foreign cars with rear engines, for instance, the VW  Beetle, the trunk (or “boot”) is in the front of the vehicle, and the catch release is in the glove compartment.

A raised hood, incidentally, is the universal distress signal, so if you break down on the road, raise the hood and tie a handkerchief to the radio antenna. While you are trying to figure out the trouble, perhaps some kind soul will stop or send help.

When you first look under the hood, the vast array of wires, hoses, and unfamiliar items will almost overwhelm you. Take heart; you are not supposed to know what each part is and how it performs or how to fix it.

You will learn simple repair, proper car care and maintenance, and preventive maintenance; as you know, the function of a few parts and how to care for them, the engine will not look mystifying anymore.

The more you learn about the engine, the more you will appreciate the excellent arrangement of coordinated devices that perform at your command and operate precisely with all parts synchronized to do the best job.

Here is a simple explanation of how a four-cycle gasoline engine— the kind found in most American and foreign cars works. The horsepower source in a vehicle is a series of four to eight pistons. They are located in the engine and housed in cylinders.

Read:  Car Engine Sensors [A Complete Guide]

Each piston moves up and down in its cylinder. Through a connecting rod, this movement causes the crankshaft to rotate; this movement, in turn, is transferred to the wheels themselves.

The source of energy for the pistons is a combustible mixture of air and gasoline.
They are fed by the carburetor to the cylinder that holds the piston and ignited. So there is a spark from the spark plug. The carburetor mixes air and gas in correct proportions to form a vapor that will burn rapidly.

A four-cycle engine takes four strokes of a piston, two up and two down, to complete a full series. Then the procedure starts all over again.

Stroke 1. The piston moves down, drawing the fuel-air mixture into the cylinder from the carburetor.

Stroke 2. The piston goes up, compressing the mixture.

Stroke 3. A spark ignites the mix, which burns fast, forcing the piston down.

Stroke 4. The piston moves up, expelling the burned gases.

In addition to compression, three vital elements are necessary to make the engine run: fuel, air, and electricity.

If the engine can’t start or coughs to a stop while driving, the most likely problem is that you are out of gasoline.

Even if you filled the lank yesterday, that does not always mean you have plenty today; maybe a thief stole your gas during the night.

A properly balanced mixture of air and gas is led by the carburetor to the engine. Though an incorrect combination will increase fuel consumption, it probably will not prevent the car from starting.

That leaves electricity, and now we have to do a little troubleshooting.

When the starter does not turn the engine over, the lights will not burn, and the horn will not blow, then there is no electricity following from the battery to the starter.

Either the battery is dead (out of juice), or the terminals are corroded.

If there are some white or grayish pilings on the terminals, loosen the cables with a wrench or pliers, remove them, and clean off. Then replace and tighten the rubles; that may correct the problem.

If not, you will probably need jumper cables and also one helper battery to get going.


If your battery has life and spins the engine, but it can not start it running, then you have more severe problems in the electrical system that may be beyond your ability to correct.

Under the Hood

As you look under the hood, you can identify the pulleys’ belts- These drive the fan and alternator (generator on some foreign cars).

It also drives some of the optional equipment, such as an air conditioner compressor and a power steering pump.

Distributor Wires

You will also sec an array of insulated wires coming from around the device called the distributor. The distributor sends electricity over the various cables to the spark plugs in the proper sequence.


The cables spread from the distributor to each of the spark plugs in octopus fashion.

Each cylinder has one spark plug; if you drive a four-cylinder car, you have four spark plugs. A V-8 of any make has eight spark plugs, four on each side of the engine.

Read:  The Importance of Car Periodic Service

An electric spark jumps across the electrodes of the spark plug and ignites the fuel-air mixture.

Air Cleaner

The air cleaner is usually a large, round, canlike item, most often located above the carburetor right over the engine.


Inside the air cleaner is a paper filter that removes dust, dirt, and other objectionable particles from the air entering the carburetor.

This paper filter must be replaced when it gets dirty; refer to your Owner’s Manual for suggestions on how often to check or replace the air filter.


The carburetor mixes the gas and air in the proper proportions to form a vapor that will burn in the engine.

Windshield washer liquid

A plastic container holds water or water and chemicals to clean the windshield. Detergent or a particular cleaning solution can be added to the water to do a better cleaning job.


In winter, use a unique solution containing antifreeze or add a deicer to the container’s water to prevent freezing.


The alternator is a round device approximately 6 inches in diameter and 6 inches thick. It has a belt-driven pulley, and it produces electricity to maintain the battery energized.

About 25 years ago, some American car manufacturers started using alternators instead of generators.


Older VW’s have a generator, but recently foreign car manufacturers switched to alternators, and now practically all American and international cars have alternators.

The alternator is extra significant than the generator and has a higher capacity than a generator of equal size.


When the dashboard alternator warning light (GEN) comes on, the most likely problem is that the drive belt has broken.

Pullover to the roadside and let the engine idle while you open the hood. If the drive belt is broken and the fan turns, close the hood and drive to the handiest service station or garage for repairs.

Do not turn the engine off! Your battery may be run down and may not start the car again.


While driving for help, turn off the radio, air conditioner, heater, and other electrical equipment to conserve electricity because the alternator is not replacing the power used.

If the drive belt is broken and the fan is not turning, turn the engine off at once! (On some cars, the fan is driven by the same belt that drives the alternator.)


You will have to obtain help. With the fan stopped, an engine will soon overheat, and expensive harm to the engine may result.


Next, find the radiator, the large metal container located between the engine and the grill, which contains the antifreeze or mix-up of antifreeze and water used in the cooling process.


You will see two rubber hoses attached to the radiator, one at the top and one at the bottom.

When these hoses get soft or comfortable to squeeze, they should be replaced, typically about every two years (see Chapter 18, Tips on Medium Tasks).


Cars with air-cooled engines do not have radiators; an example is a VW with a rear engine.

The proper liquid level in the radiator is critical.

Your car has either a sealed cooling system or a conventional pressure cooling system.

A sealed cooling system has a translucent plastic container, which holds the overflow coolant.

Read:  Understanding Blind Spot Areas When Driving To Reduce Accident Risk

This is located near the radiator and is connected to it by a hose entering it near the cap.


The battery is easy to identify; it resembles a cube in shape, about 10 inches long, 7 inches wide, and 8 inches deep.

The battery is called the storage battery because it provides electricity to start the engine and then is recharged when the engine runs—two heavy insulated electrical cables attached to terminals on the top or on the side of the battery.

On the top are six vent caps or lids (except in some new batteries, which never need to have water added).
Each vent cap must be removed to check the liquid level in the battery.

Ask the seller to show you where the battery is located if you buy a foreign car, or you may have to hunt for it.


For example, some Fiats with rear engines may have a battery under the front trunk’s floor mat.

A VW Beetle has a battery under the rear seat.

Just lift up the lower part of the back seat, and you will locate the battery on the passenger side.
Most foreign cars have the battery located under the front hood, just as in most American cars.

Engine oil level

The oil dipstick is used to check the engine oil level and is located on the engine’s side. You can identify it by the loop at the stick, which allows it to be pulled out easily for checking.

If your car has a manual shift, there is only one dipstick under the hood. If you have an automatic transmission, there is a transmission fluid dipstick to measure the transmission fluid level.

This dipstick is located at the rear of the engine near the firewall. This partition is fire-resistant to lessen the danger of fire getting into I lie passenger compartment from the engine.

You don’t have to worry about checking the transmission fluid, which is inspected when the car is serviced at regular intervals. If the transmission fluid becomes low for some reason, the automatic transmission will be sluggish in shifting.

You can have the transmission until checked at the nearest garage or service station, or check it yourself (see Tips on Easy Tasks) and add some fluid if needed.

The items I have named are certainly not all the things found under the hood. But they are the components that are easily seen or located, but you will be concerned about performing primary auto care.

After you can identify these parts, you should check the hood us often as necessary to shield the car engine and give peace of mind, perhaps every two weeks or every 500 miles.

This check should include the liquid level in the radiator, the battery’s liquid level, and the level of oil in the engine. Besides, tire pressure should be checked.
